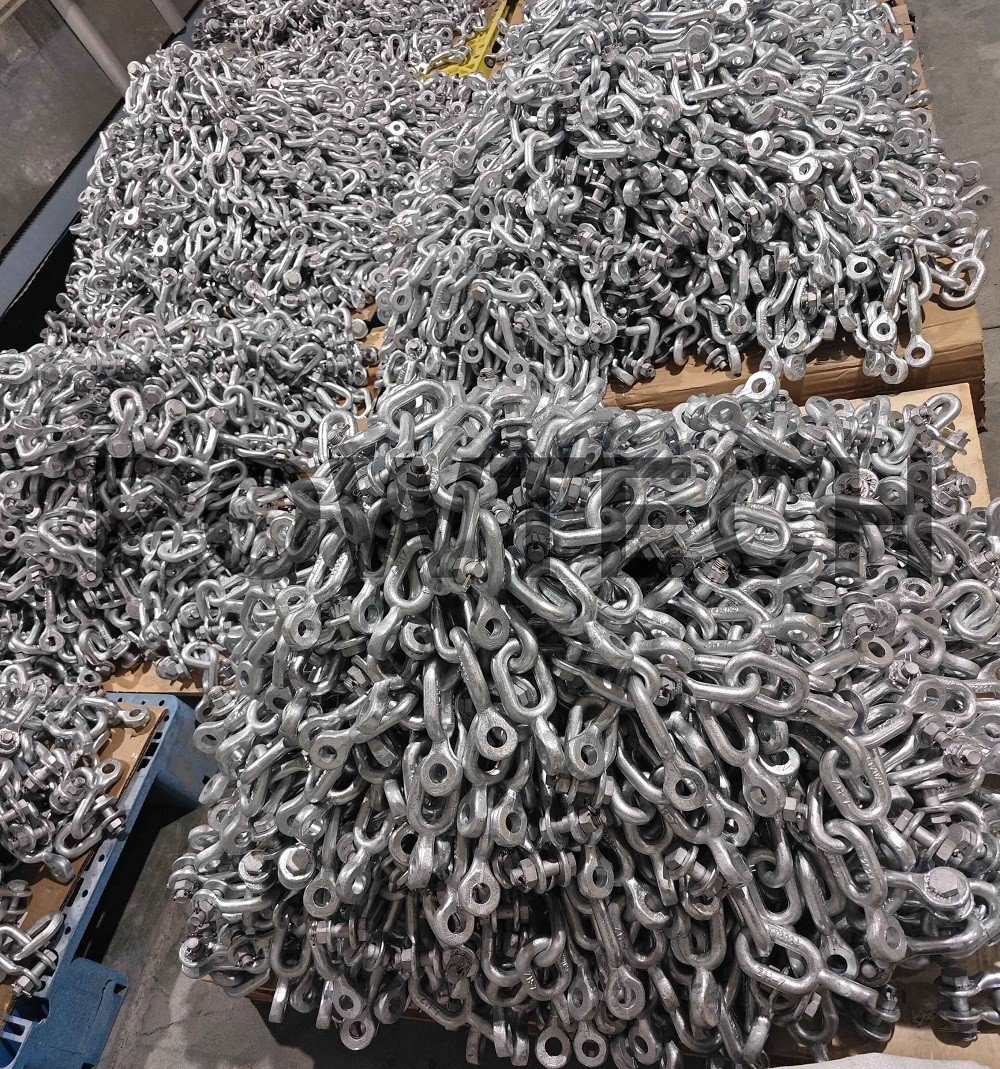

U-5, U-7, U-10 Anchor shackle is made of hot dip galvanized steel,can be widely used as cable connecting fittings on ADSS/OPGW cable tenison clamp/suspensin clamp, transmission link fittings,easy to install and operate.
U-5, U-7, U-10 Anchor shackle is made of hot dip galvanized steel,can be widely used as cable connecting fittings on ADSS/OPGW cable tenison clamp/suspensin clamp, transmission link fittings,easy to install and operate.
Features:
1. material:hot dip galvanized steel
2. anti-corrosion
3. good performance
4. easy to use and install
Technical Data:
| Product Name | Anchor shackle for optic cable clamp |
| Material | Hot dip galvanized steel |
| Size | U-4,U-5,U-7,U-10 |
| Application | ADSS/OPGW cable clamp as line fittings assembly |
| Advantages | Heavy duty physical performance,anti-corrosion,easy to install and dismantle etc. |
| Item No. | Dimension(mm) | Ultimate Strength(kn) | Weight (kg) | ||||
| C | d | B | L | R | |||
| U-7 | 20 | 16 | 16 | 120 | 15 | 70 | 0.65 |
| U-10 | 22 | 18 | 18 | 140 | 17 | 100 | 0.92 |
| U-12 | 24 | 22 | 20 | 140 | 18 | 120 | 1.40 |
| U-16 | 26 | 24 | 22 | 140 | 19 | 160 | 1.64 |
| U-21 | 30 | 27 | 24 | 160 | 22 | 210 | 2.90 |
