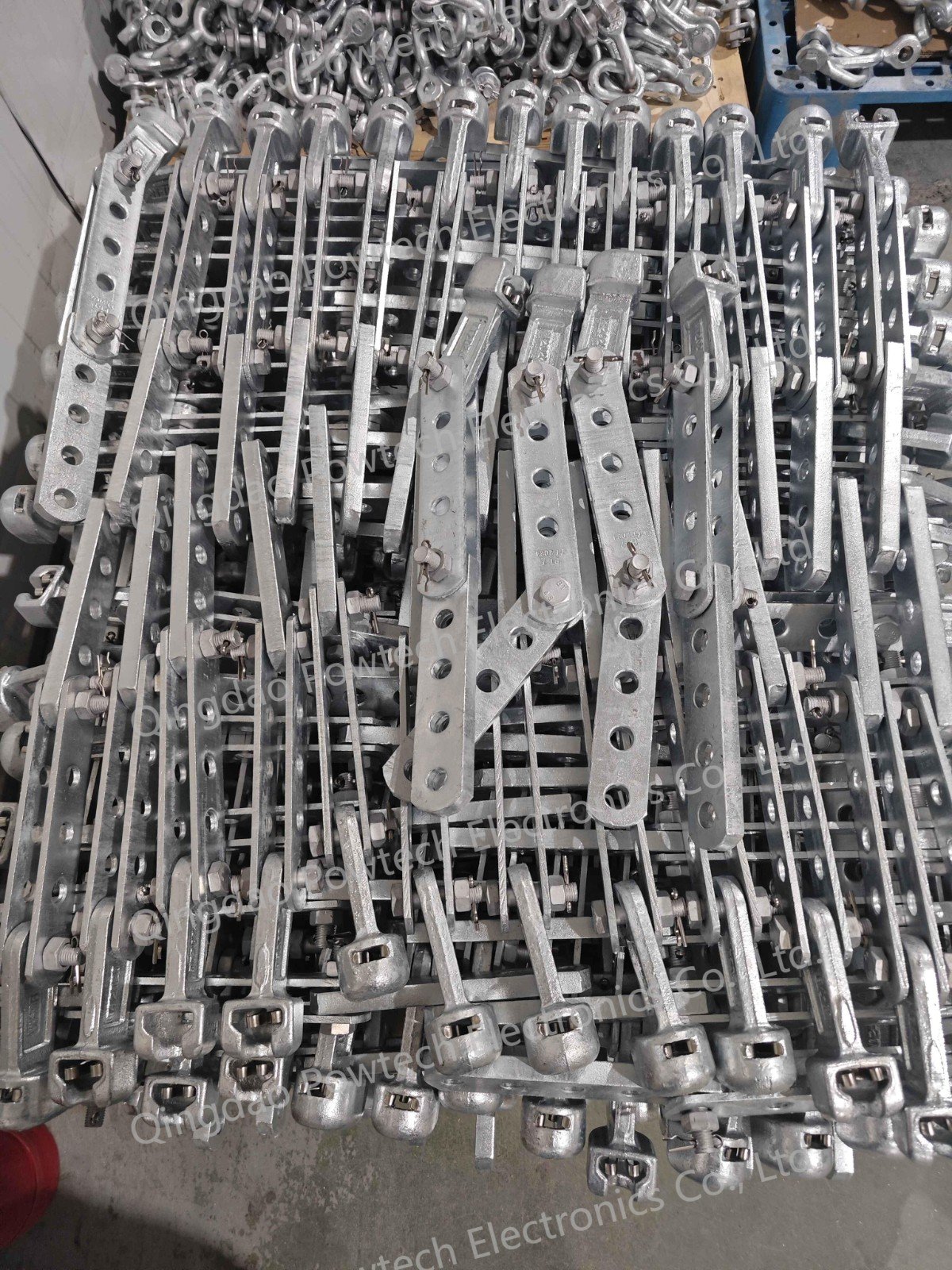

The PT adjustment board belongs to the connection fittings in the power fittings, and is an adjustable parallel hanging plate. PT hanging board double corner insulator string and tensile insulator string use. When in use, calculate the distance between the two suspension points of the fixed insulator string according to the number of rotation angles of the corner tower, and add an adjustable length parallel hanging plate to adjust the length of one string.
The PT adjustment board belongs to the connection fittings in the power fittings, and is an adjustable parallel hanging plate. PT hanging board double corner insulator string and tensile insulator string use. When in use, calculate the distance between the two suspension points of the fixed insulator string according to the number of rotation angles of the corner tower, and add an adjustable length parallel hanging plate to adjust the length of one string.
material: Hot-dip galvanized steel
rated failure load:70-500kn
| Catalog No. | Main Dimensions(mm) | Specified Failure Load (kN) | ||||||
| b | C | L1 | L2 | L3 | 中 | M | ||
| PT-7 | 16 | 18 | 45 | 45 | 60 | 18 | 16 | 70 |
| PT-10 | 16 | 20 | 50 | 50 | 65 | 20 | 18 | 100 |
| PT-12 | 16 | 24 | 60 | 60 | 75 | 24 | 22 | 120 |
| PT-16 | 18 | 26 | 65 | 65 | 80 | 26 | 24 | 160 |
| PT-21 | 24 | 30 | 70 | 70 | 90 | 30 | 27 | 210 |
| PT-25 | 30 | 34 | 80 | 80 | 100 | 33 | 30 | 250 |
| PT-30 | 32 | 38 | 80 | 80 | 100 | 33 | 36 | 300 |
| PT-50 | 38 | 40 | 160 | 160 | 80 | 45 | 42 | 500 |
