Wire Mesh Cable Trays is a state-of-the-art solution for cable management, offering superior load-bearing capacity and flexibility in installation. It is widely recognized for its open design, which promotes excellent heat dissipation and easy maintenance.

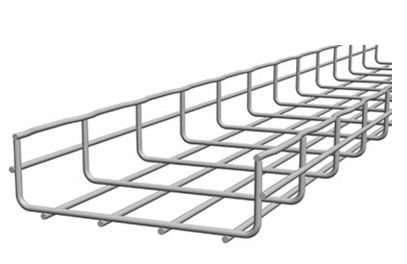

Wire Mesh Cable Trays
The Wire mesh cable trays system is designed for maximum flexibility, allowing for easy field cutting, bending, assembly and conveninent cable drop outs.
Dimensions: (Available for customized)
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm..
Width: 50~1000mm
Length: Max. 3000mm
Wire diameter: 3.5~6.0mm
Cable Tray dimensions are all internal size.
Applications:
Wire Mesh Cable Trays are mainly used for low voltage, telecommunication, and fiber optic cables supported on short
Accessories
Cablofil wire mesh cable trays material
Q235B Steel (Chinese standard steel), SS304, SS316 or SS316L
Surface Finish:
(1) Electro zinc plated- for indoor use to BS EN 12329-2000,
(2) Hot Dipped Galvanized- for outdoor use to BS EN 1461-1999
(3) Electrolytic Polishing -for stainless steel use.
