Metal Single Side Ties are intended for securing bare conductors into the side groove of insulators.
On horizontally-mounted insulators, single side ties can normally accommodate line angels of up to 10̊.
On vertically-mounted insulators, line angles up to 40̊ can normally be achieved.

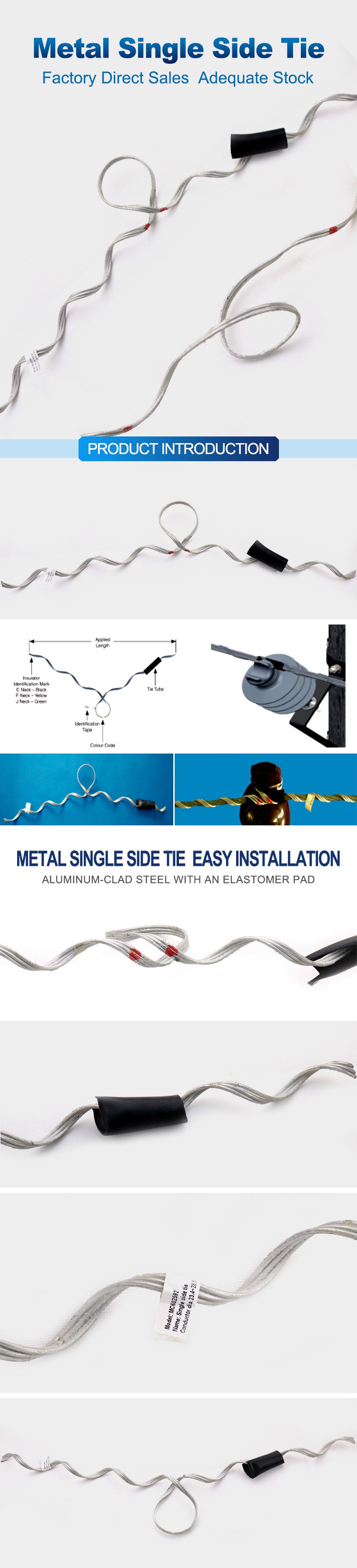

Metal Single Side Insulator Tie
Applicable conductor: ACSR, All-Aluminum, Aluminum Alloy and etc ...
Material:Aluminum-clad steel with an elastomer pad
Mechanical:Metal Single side ties will develop unbalanced and lift-off loads equivalent to , or in excess of, a hand tie over covered conductor. When installed with a pad on bare conductor, single side ties provide superior protection against abrasion and all types of conductor motion. The pad is a resilient cushion at the point of contact between conductor and insulator.

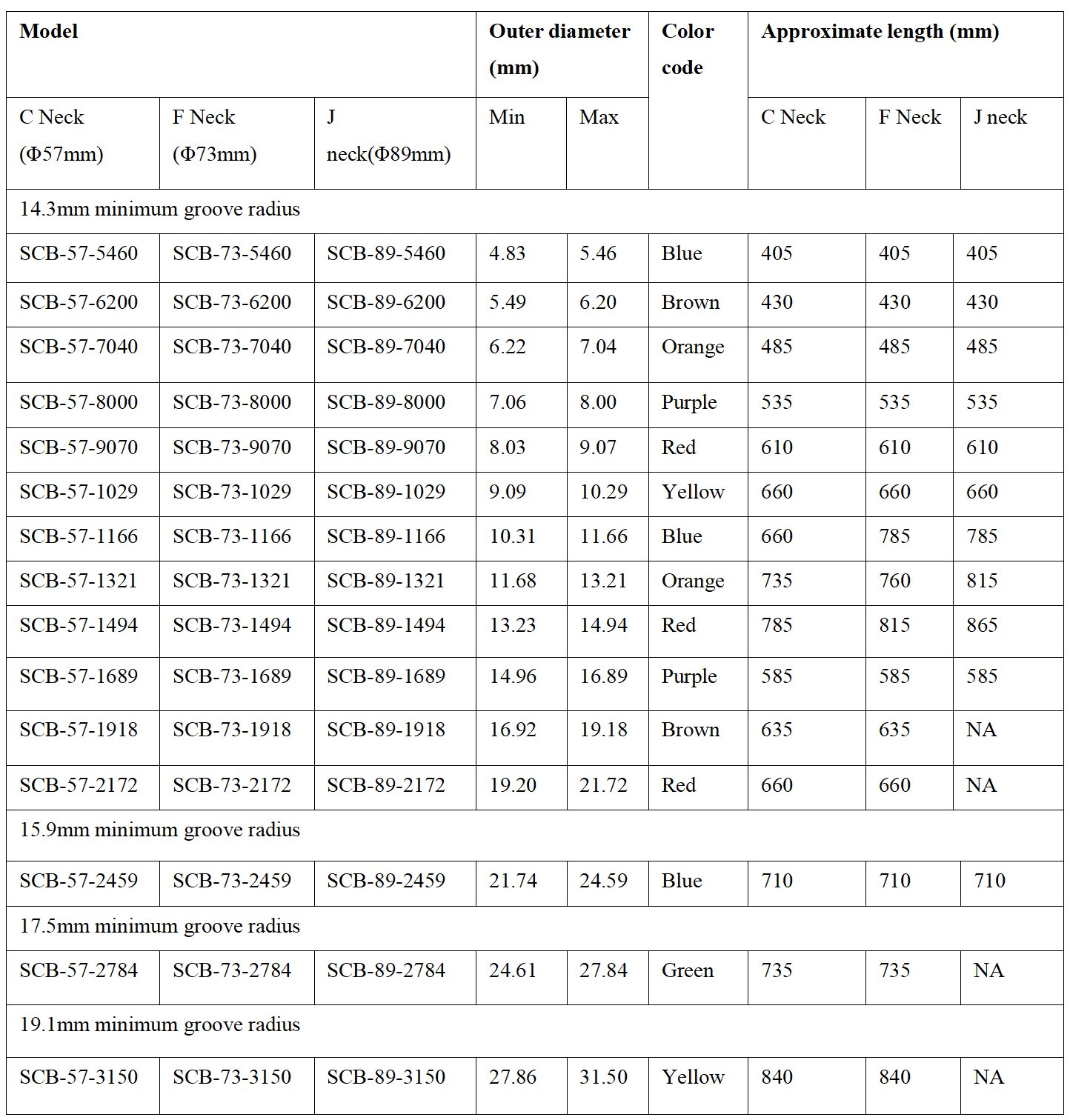

Data sheet
