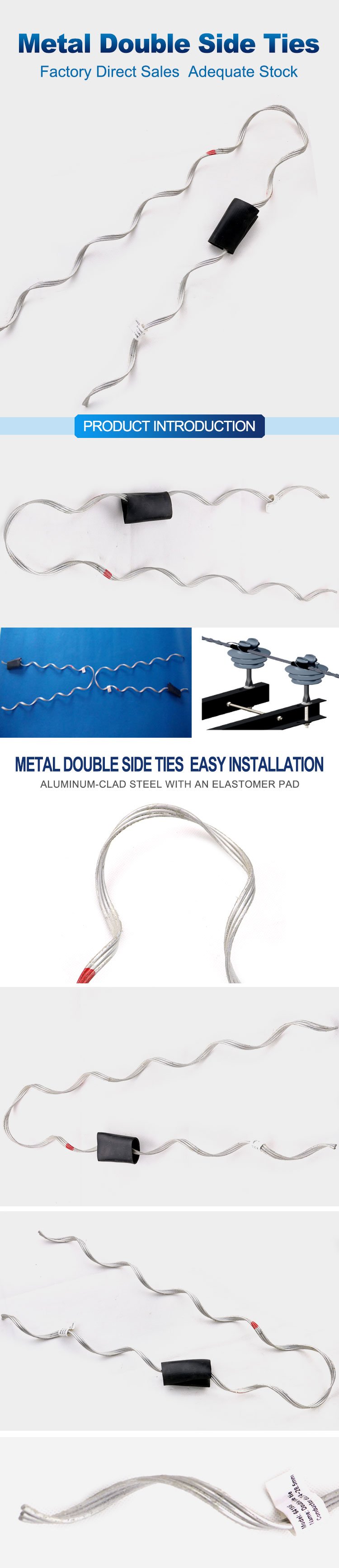

Metal Double Side Insulator Tie are intended for securing bare conductors into the side groove of insulators.
On vertically-mounted insulators at double crossarms or brackets, the double side ties can normally accommodate line angles of between 0̊ and 80̊,with no more than a 40̊ angle at each insulator.
Metal Single Side Insulator Tie
Applicable conductor: ACSR, All-Aluminum, Aluminum Alloy and etc ...
Material: Aluminum clad steel with an elastomer pad
Mechanical:Metal Double side insulator ties will develop unbalanced and lift-off loads equivalent to , or in excess of, a hand tie over covered conductor. When installed with a pad on bare conductor, double side ties provide superior protection against abrasion and all types of conductor motion. The pad is a resilient cushion at the point of contact between conductor and insulator.

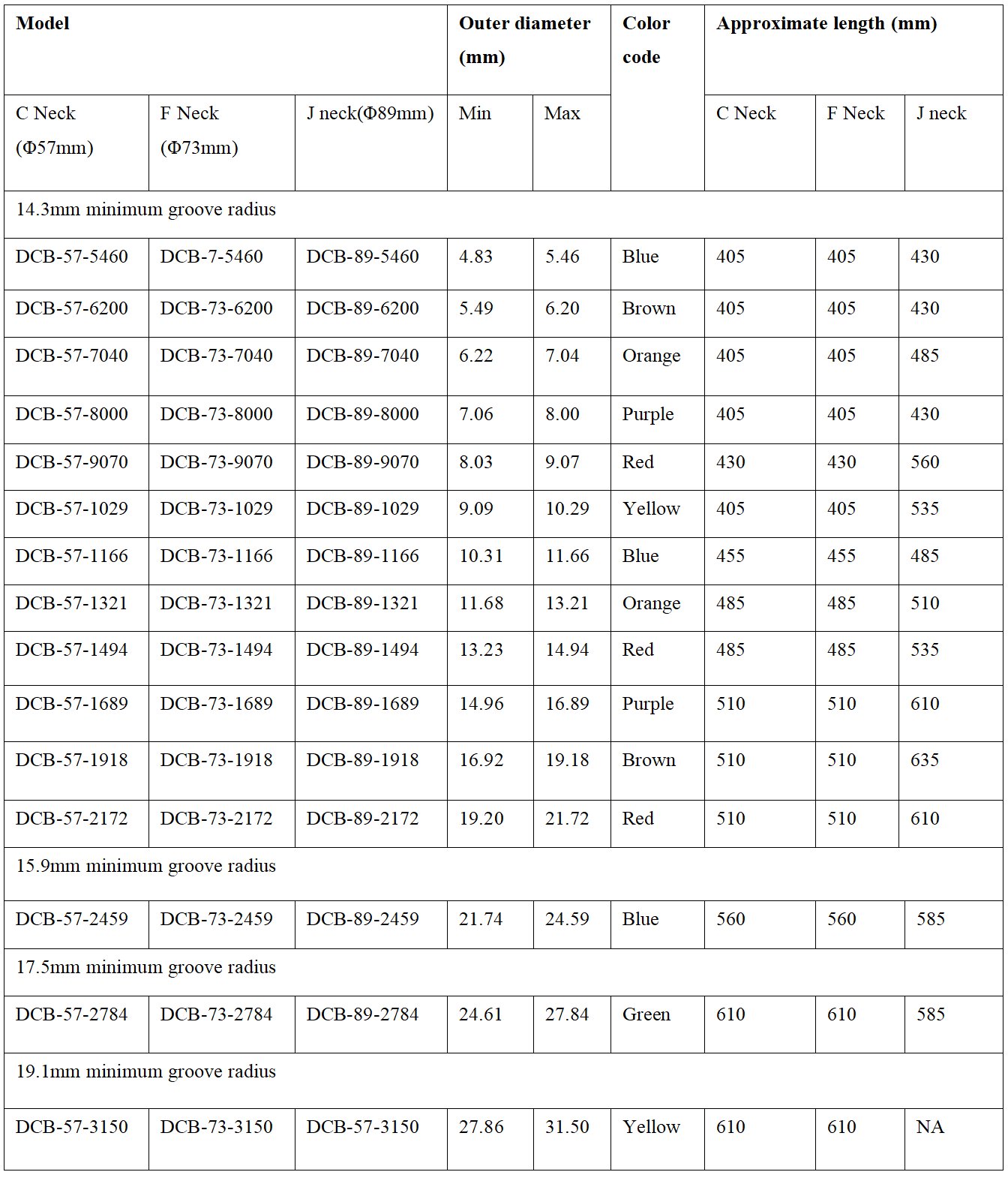

Data sheet
