The mini Fiber Optic Face Box also called Socket Panel fiber optic termination box is used for splicing and termination between indoor fiber optic cable and pigtails with SC or LC type adaptor. They are used for wall mounted or desktop applications. Made of the plastic material, is easy to install in home or office. Outlets are designed to fit SC/LC fiber optic cable patch cord adapter, used in work location subsystem.
FTTH box is used as the connection equipment of the fiber termination in the aerial optical cable engineering.It can store the connector of optical cable and its terminal cable. The high strength plastic, resistant to rain, For indoor and outdoor wall mount or pole mount
Application:
Optical LAN & WAN & CATV
Optical fiber communication networks
PON Networks
Optical Signal Distribution
FTTH project & FTTX
Technical data sheet:
Module quantity:1pcs
Connector type:SC/PC
Polish of connector:SM Ultra polish
Connector insertion loss<0.15dB
Connector discrete reflectance:55dB
Number of puttings to Adapter:≥200times
Operation temperature:-10-70°c
Material:Mentallic
Access type:Front side

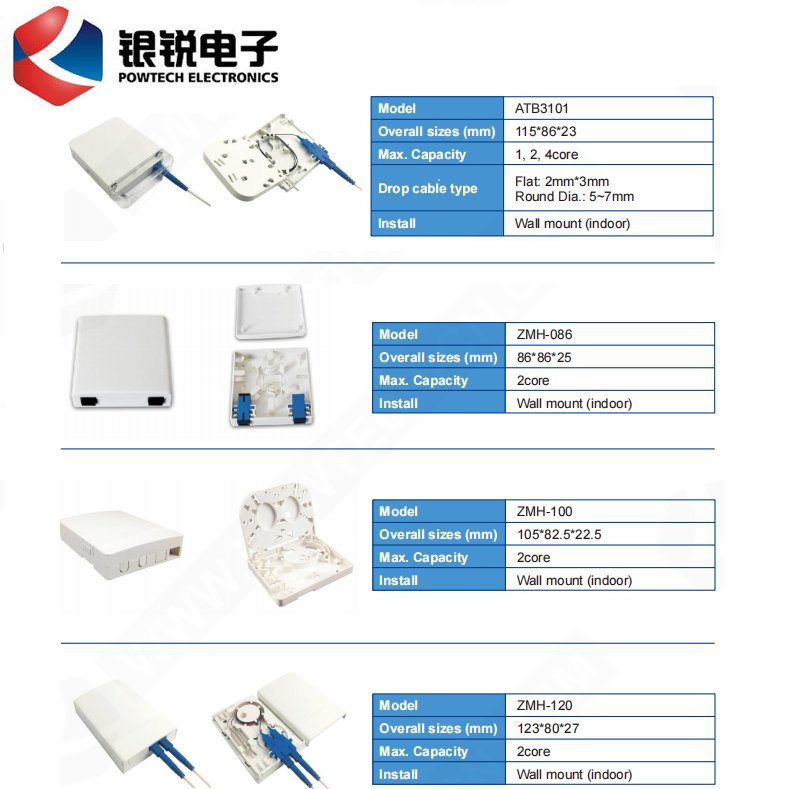

| Model | Name | Port | Size(L*W*D,mm) |
| ZMH-86/02 | Fiber optic face box | 2core | 86*86*24 |
| ZMH-110/02 | Fiber optic face box | 2core | 110*86*25 |
| ZMH-120/02A | Fiber optic face box | 2core | 120*80*25 |
| ZMH-120/02B | Fiber optic face box | 2core | 120*80*25 |
| ZMH-120/01 | Fiber optic face box | 1core | 120*90*23 |
| ZMH-135/02 | Fiber optic face box | 2core | 135*75*25 |
| ZMH-150/04 | Fiber optic face box | 4core | 150*110*30 |
| ZMH-263/08 | Fiber optic face box | 8core | 263*135*50 |
